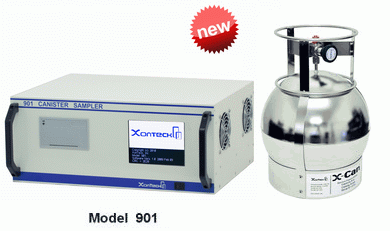

Model 901 Canister Sampler
The Xonteck Model 901 Canister Sampler is a computer-controlled, programmable sampler that is designed to collect volatile organic compounds in ambient air. The method is based on collection of whole air samples into "Summa" electropolished canisters as outlined in USEPA TO-14A/TO-15/TO-15A Methods.
Features
● Meets all PAMs and TO-14A/TO-15 requirements
● Integrated computer with touch-screen and printer
● Mass flow controller maintains constant and adjustable flow rate
● Stainless steel, Teflon® and Viton® wetted surfaces, certified clean*
● Programmable system purge prior to sampling
● Automatic power failure recovery
● Ethernet ports for network connection
● Up to 16 canisters sampling (optional)
● Sticker label printing (optional adhesive label printer available)
Sample Flow Control: Mass Flow Controller, typically 0-20,0-50,0–100sccm or customer specified, accuracy and linearity to ±1% of full scale.
Display: touch screen, TFT color graphics, white LED backlight, 5.7" diagonal, 320 x 240 pixel density.
Internal Sample Pump: AD B161 diaphragm pump, SS single head, max vacuum 23.0”Hg, max flow 7.6 lpm.
Digital Pressure Transducers:
Canister Pressure: 30"Hg-0-30psig, 0.1”Hg or 0.1 psig resolution.
Pump pressure: 0-30 psig range, 0.1 psig resolution.
Pump Pressure Adjustment: swagelok SS Poppet Check Valve, adjustable pressure, 1/4” end connection, cracking pressure 3-50 psig (0.21 to 3.5 bar).
Integrated Temperature Control: Designed into PC circuit for enclosure heat control via 100 Watt silicone rubber heater
Temperature Display: enclosure temperature displayed, RTD sensor, -40 °C to 150 °C, 1 °C resolution.
Connections:
Inlet: 1/4” tube fitting
Outlet: 1/8” tube fitting
Bypass Flow Outlet: 1/4”
Power: 115V/60Hz; 220V/50Hz(optional).
Dimensions: 7”(H)×19”(W) ×13”(D)
Weight: 20lbs
Communication: RS-232, Ethernet and optional 2400 baud internal modem.
