Model 924 Toxic Air Sampler

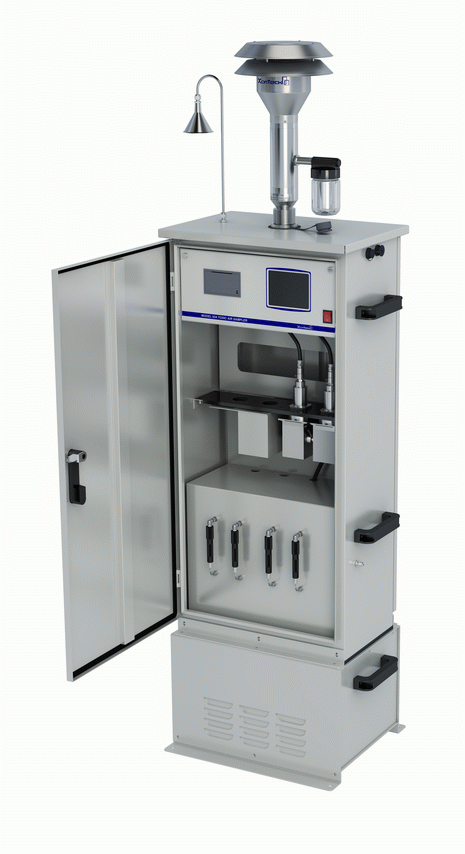

The Xonteck Model 924 Toxic Air Sampler is designed for unattended field use to collect ambient air samples for laboratory analysis of toxic compounds.
The sampler is modular in design and consists of a control unit, pump box assembly, rain shield, and sampling head mount. The sampler can accept from one to four sampling channels that include 37/47mm filter for Cr6 and other particulates, Carbonyl with optional pre-filter, Sorbent tube with upstream actuation valve, and Canister (VOC).*
Features
● Canister, Carbonyl, 37/47mm Filter (Cr6), and Sorbent tube multi- configurable
● Weather proof four-channel stand-alone sampling station
● Corrosion resistant stainless steel and brass fittings
● Integrated computer with printer and touch-screen display
● Temperature controlled heater and fans for cold or hot weather operation
● Modular design for ease of assembly, installation, operation and service
Sample Flow Control: Mass Flow Controller, typically 0-2SLPM, 0-20SLPM or customer specified, accuracy and linearity to ±1% of full scale.
Display: touch screen, TFT color graphics, white LED backlight, 5.7” diagonal, 320 x 240 pixel density.
External Sample Pump: Gast 1023 Series Motor Mounted Rotary Vane, max vacuum 26” Hg, open flow 10.0 CFM.
Digital Vacuum Transducers: -30”Hg to 45psig, ±0.5 % of Full Scale (BFSL).
Integrated Temperature Control: Designed into PC circuit for enclosure heat control via 100 Watt silicone rubber heater.
Temperature Display: enclosure temperature displayed, RTD sensor, -40 °C to 150 °C, 1 °C resolution.
Power: 115V/60Hz; 220V/50Hz(optional).
Dimensions: 7’(H)×1’10”(W) ×1’(D)
Weights:
Sampler (pump not included): 128lbs
Sample Pump: 52lbs
